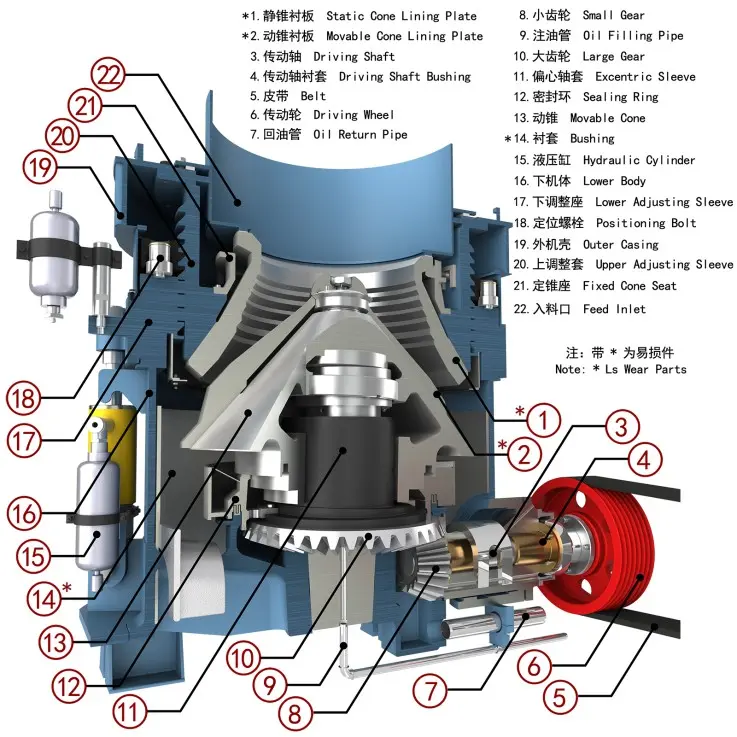

When cone crusher works, the motor drives the pulley, the pulley drives the gears, the gears drive the movable cone on the eccentric shaft to make high-speed movement. The materials enters the crushing chamber from the feeding mouth, and is split and broken under the extrusion between the static cone liner and the movable cone liner, so as to discharge proper discharging size.
| Type | Diameter of cylinder (mm) | Feeding size (mm) | Adjustment range of output size (mm) | Capacity (t/h) | Rotation speed (r/min) | Power (kw) | Overall size (mm) | Weight (t) |
|---|---|---|---|---|---|---|---|---|
| PYB600 | 600 | 65 | 12-25 | 15-25 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYZ600 | 600 | 45 | 5-18 | 8-23 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYD600 | 600 | 36 | 3-13 | 5-20 | 356 | 30 | 1740*1225*1940 | 5.5 |
| PYB900 | 900 | 115 | 15-50 | 50-90 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYZ900 | 900 | 60 | 5-20 | 20-65 | 333 | 55 | 2692*1640*2350 | 11.2 |
| PYD900 | 900 | 50 | 3-13 | 15-50 | 333 | 55 | 2692*1640*2350 | 11.3 |
| PYB1200 | 1200 | 145 | 20-50 | 110-168 | 300 | 110 | 2790*1878*2844 | 24.7 |
| PYZ1200 | 1200 | 100 | 8-25 | 42-135 | 300 | 110 | 2790*1878*2844 | 25 |
| PYD1200 | 1200 | 50 | 3-15 | 18-105 | 300 | 110 | 2790*1878*2844 | 25.3 |
| PYB1750 | 1750 | 215 | 25-50 | 280-480 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYZ1750 | 1750 | 185 | 10-30 | 115-320 | 245 | 160 | 3910*2894*3809 | 50.3 |
| PYD1750 | 1750 | 85 | 5-13 | 75-230 | 245 | 160 | 3910*2894*3809 | 50.2 |
| PYB2200 | 2200 | 300 | 30-60 | 59-1000 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYZ2200 | 2200 | 230 | 10-30 | 200-580 | 220 | 260-280 | 4622*3302*4470 | 80 |
| PYD2200 | 2200 | 100 | 5-15 | 120-340 | 220 | 260-280 | 4622*3302*4470 | 81.4 |
Q1: How does a cone crusher process materials?
A: The motor drives the pulley, which drives the gears. This action causes the movable cone on the eccentric shaft to perform high-speed movements, crushing the materials between the static cone liner and the movable cone liner before discharging them.
Q2: What is the adjustment range of the output size for the PYB600 model?
A: The adjustment range of the output size for the PYB600 model is between 12 mm and 25 mm.
Q3: Which cone crusher model supports a maximum feeding size of 300 mm?
A: The PYB2200 model supports the largest feeding size of 300 mm among the listed specifications.
Q4: What are the capacity limits for the 1200 series cone crushers?
A: The capacity ranges from 18-105 t/h for the PYD1200, 42-135 t/h for the PYZ1200, and up to 110-168 t/h for the PYB1200 model.
Q5: What is the power requirement for the PYB2200, PYZ2200, and PYD2200 models?
A: All the 2200 series models (PYB2200, PYZ2200, and PYD2200) require a motor power of 260-280 kW.
Q6: How does rotation speed change with larger cylinder diameters?
A: Generally, rotation speed decreases as the cylinder diameter increases. For example, 600 mm models operate at 356 r/min, while the larger 2200 mm models operate at a slower 220 r/min.
