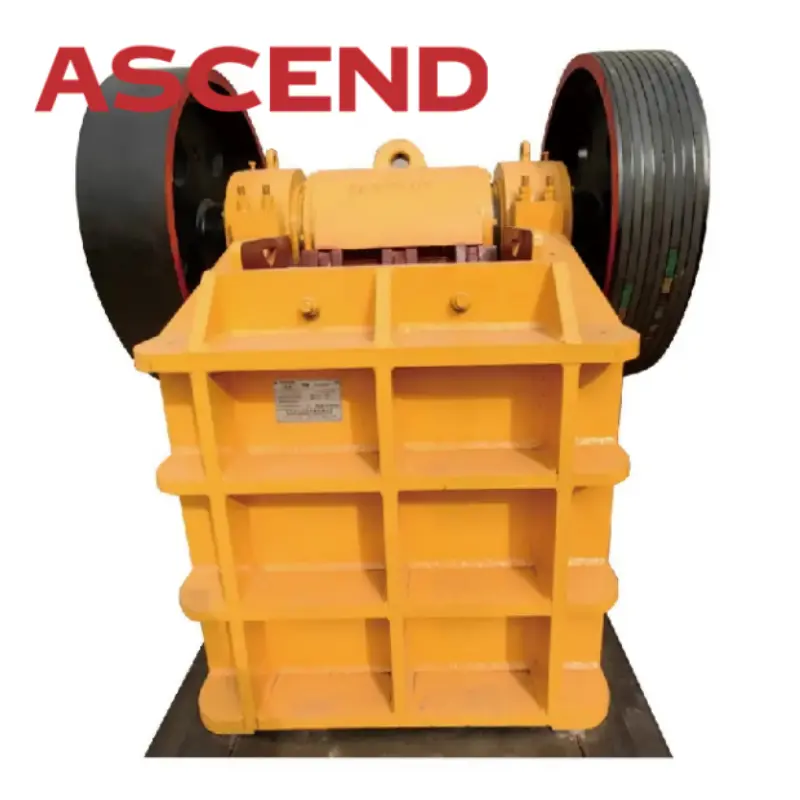

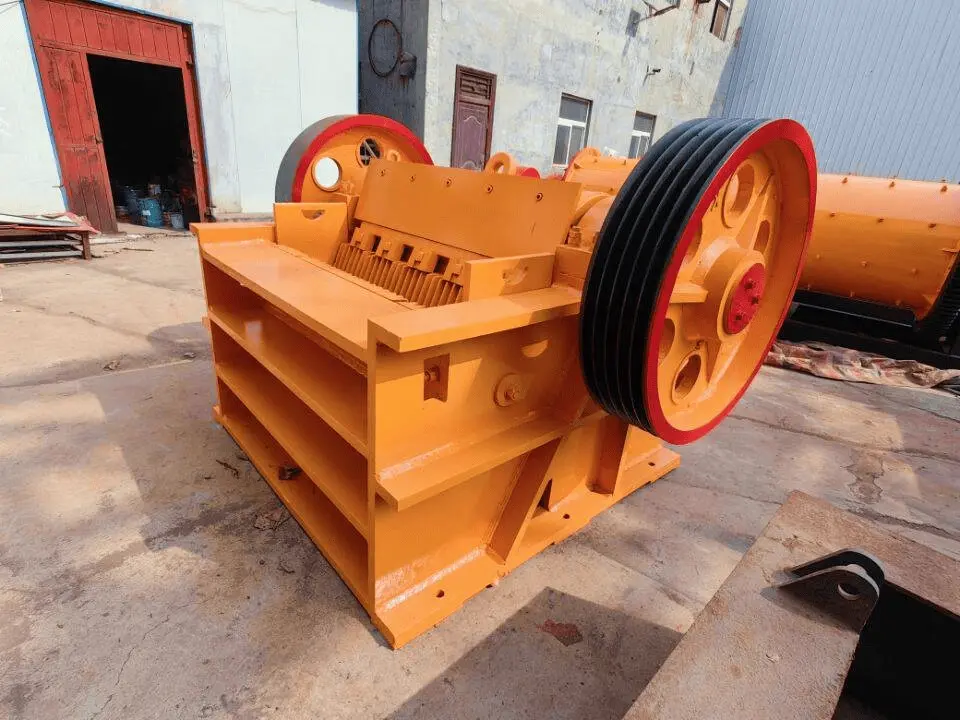

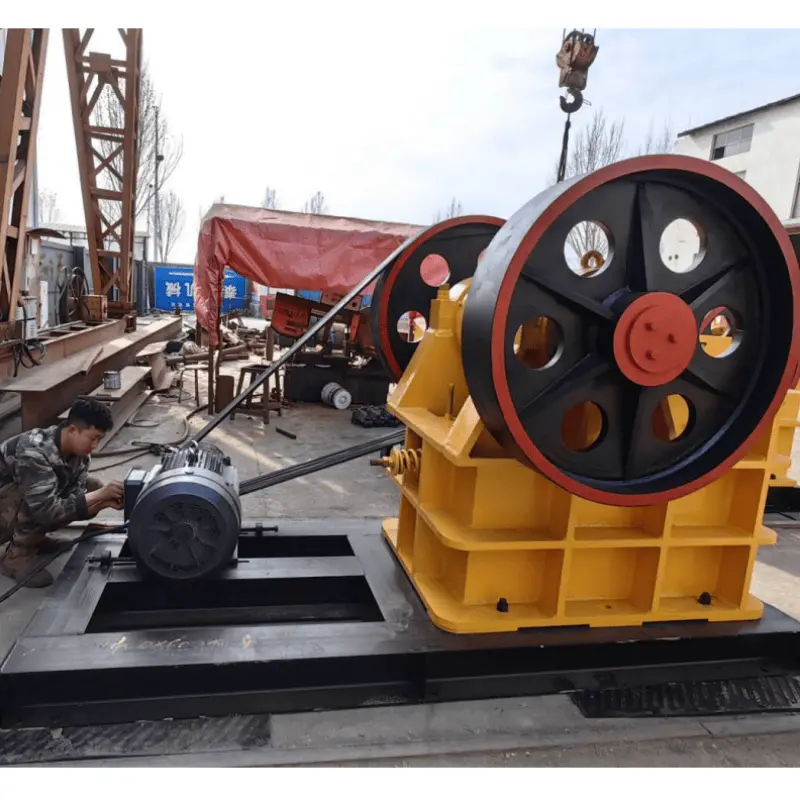

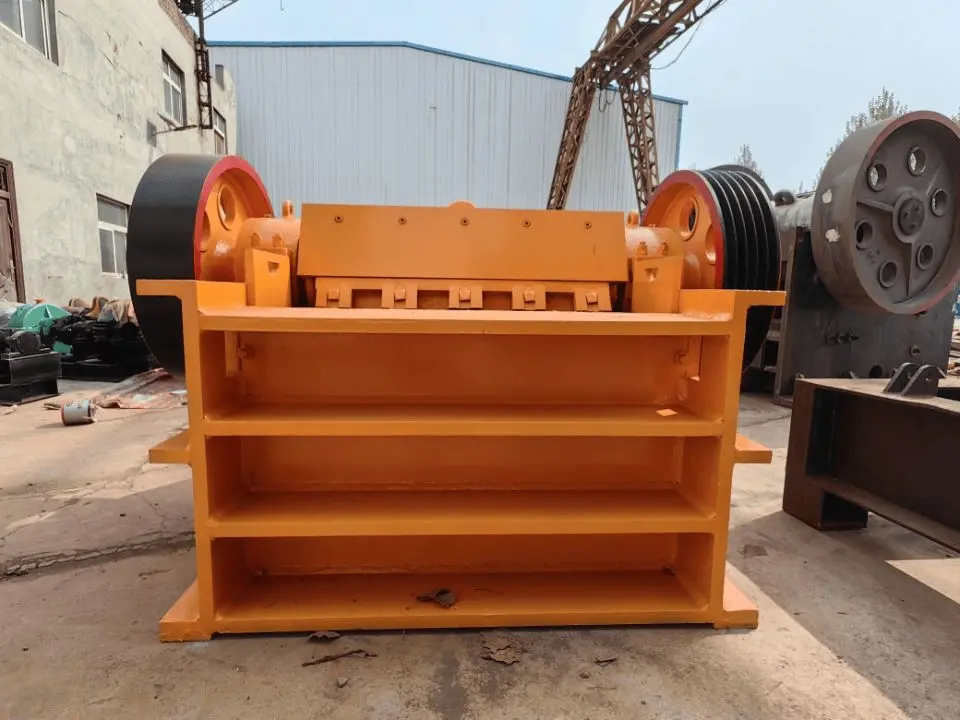

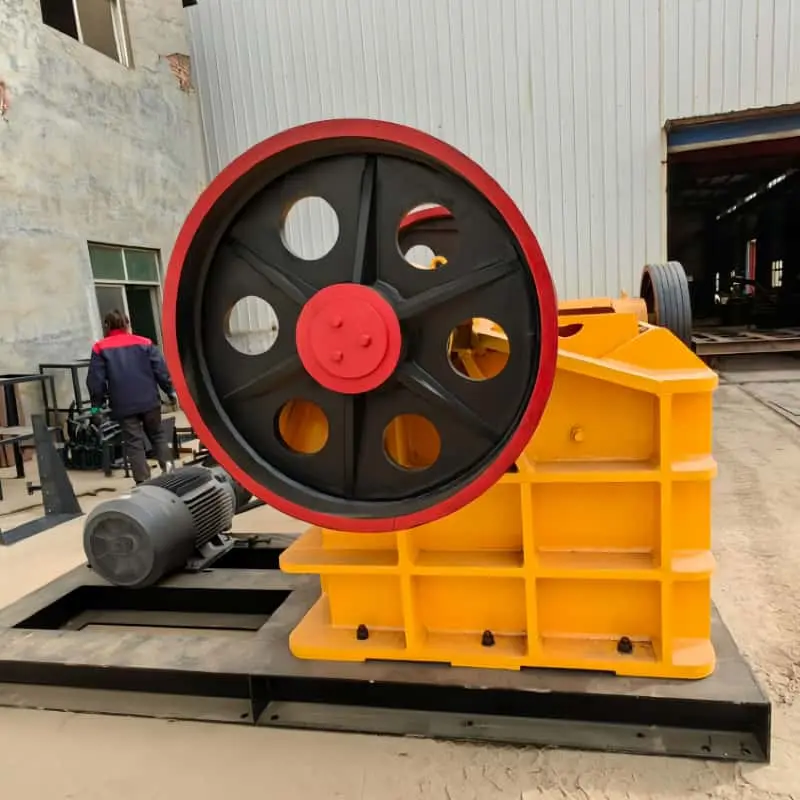

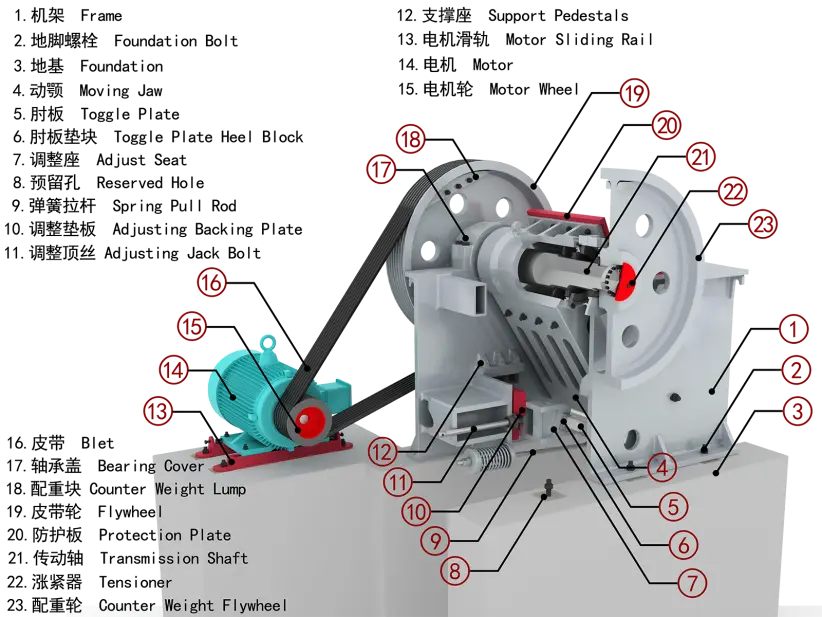

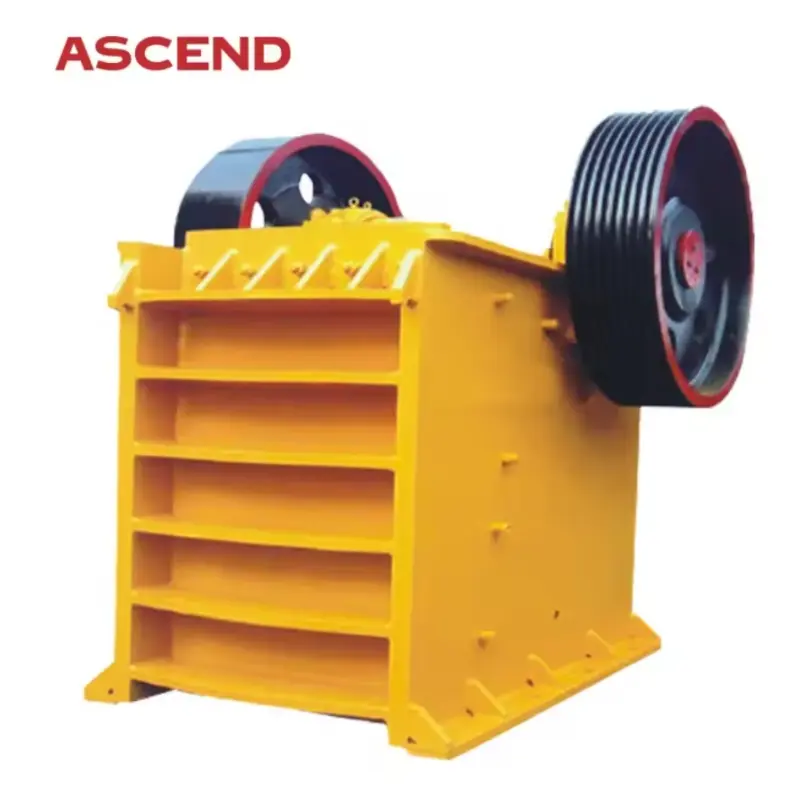

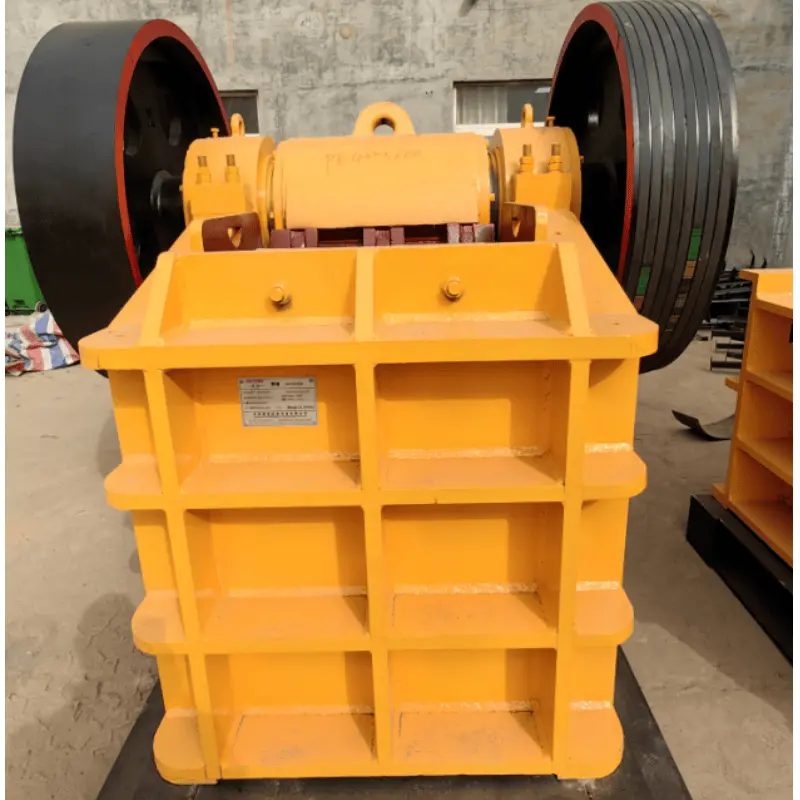

The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw and the stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
The jaw crusher usually worked with electric motor, while we can equip the jaw crusher machine with diesel engine based on demand of customer. Besides we provide both fixed type jaw crusher and mobile crusher plant for customer to choose.
| Model | Max. Feeding size (mm) |
Discharge size (mm) |
Capacity (t/h) |
Motor power (kw) |
Weight (t) |
Dimension (mm) |
|---|---|---|---|---|---|---|
| Pe150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
| Pe200*300 | 210 | 10-20 | 5-10 | 7.5 | 2 | 1180*930*1120 |
| Pe250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
| Pe300*500 | 240 | 10-30 | 20-30 | 22 | 3.8 | 1560*1430*1460 |
| Pe400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
| Pe500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
| Pe600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
| Pe750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
| Pe900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
| Pex150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
| Pex250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
| Pex250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
| Pex250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
The motor transmits power through the belt, driving the moving jaw via the eccentric shaft to perform a periodic motion toward the fixed jaw. Materials are crushed between these jaws during this process and discharged from the bottom outlet.
Yes, while standard models typically operate with an electric motor, the jaw crusher machine can be customized and equipped with a diesel engine based on customer requirements.
Yes, we provide both fixed type jaw crushers and mobile crusher plants to suit different operational preferences and construction site requirements.
The capacity depends on the model selection. It ranges from 1-3 t/h for smaller models (such as Pe150*250) up to 220-450 t/h for industrial-scale models (such as Pe900*1200).
Our jaw crushers can handle maximum feeding sizes starting from 120 mm (Pex150*750 model) up to a maximum of 750 mm (Pe900*1200 model).
