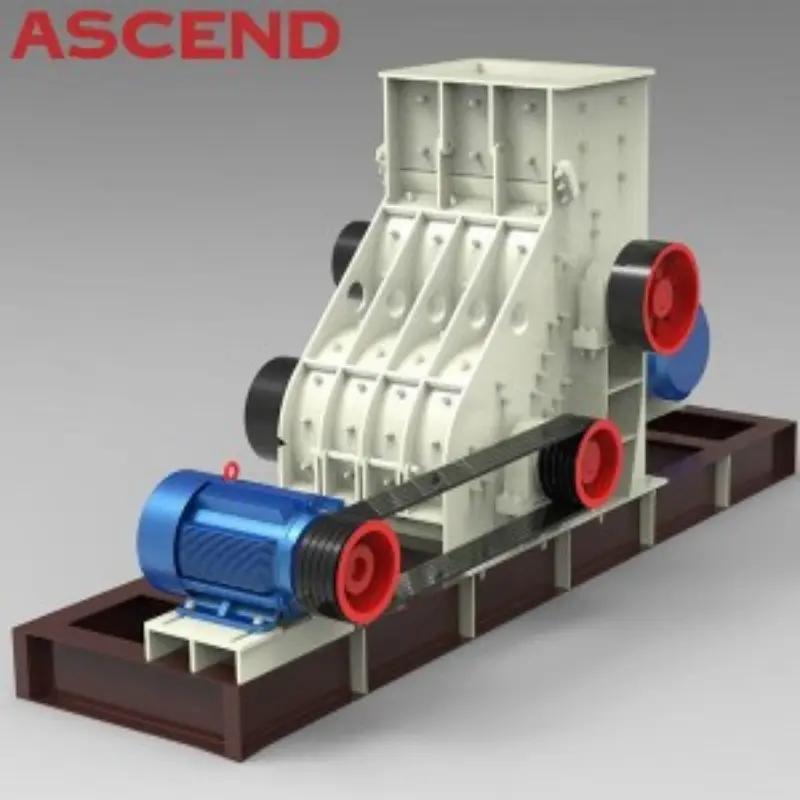

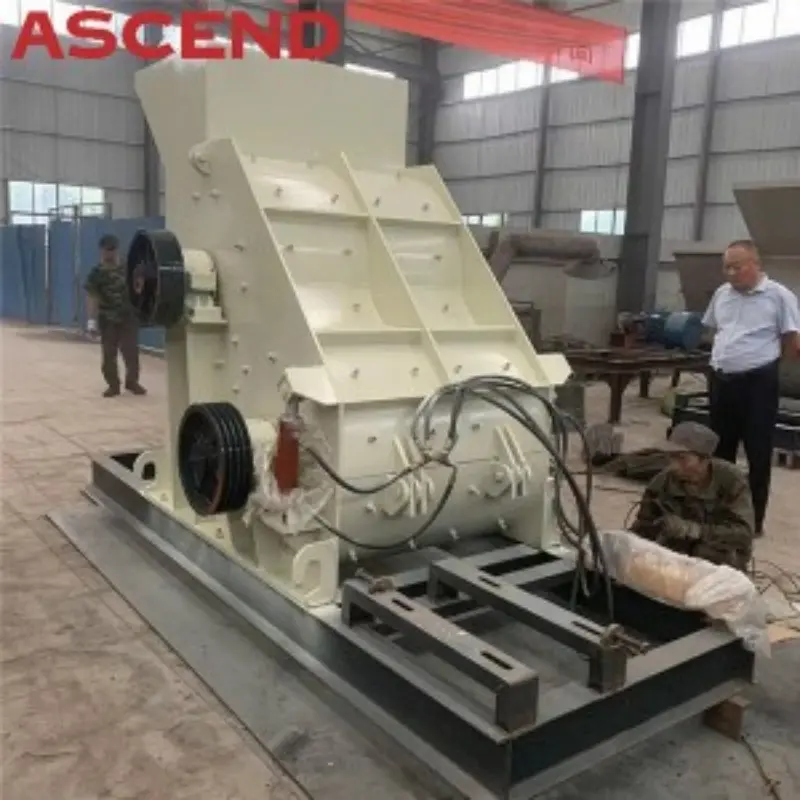

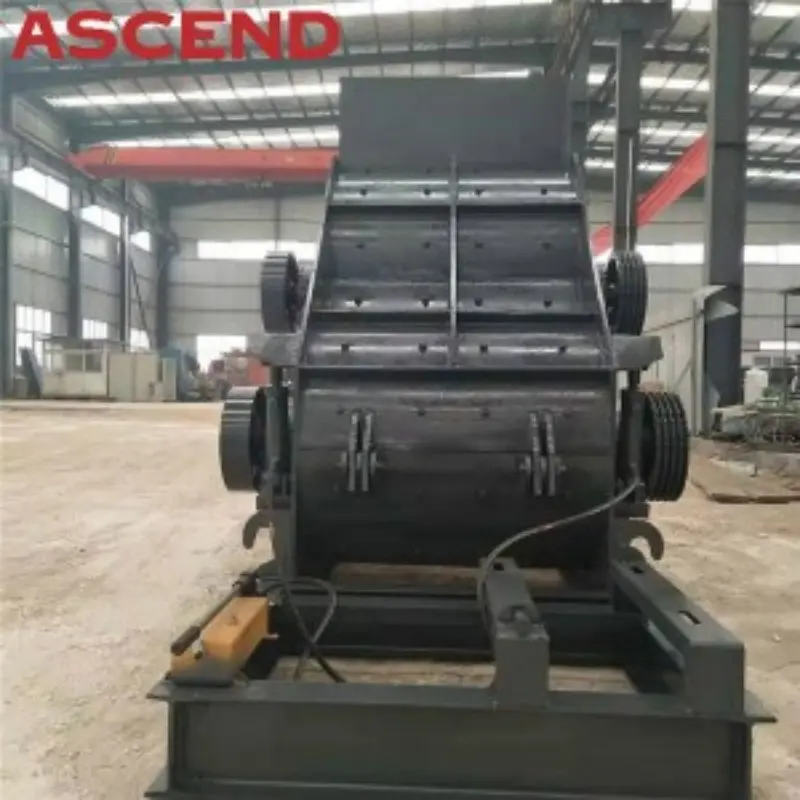

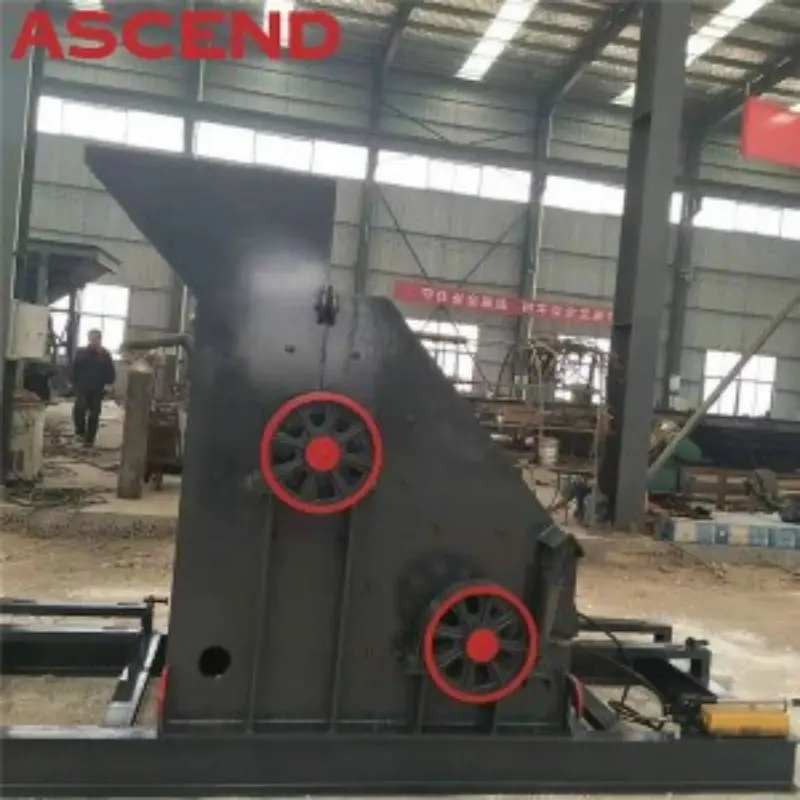

High-Quality Wet Coal Material Double Stage Hammer Crusher Manufacturers, Suppliers

Double rotor stage crusher is a new type crushing machine. In fact, it is the same as two Hammer Crushers combining together reasonably with 2 rotors applying at the same time. It is also called double rotors hammer fine crusher or no screen hammer mill crusher which avoids the problem of output products choking and stuck. So it is suitable for crushing wet or sticky materials, like calcite, limestone, coal slag, furnace slag, ore slag in the brick plant, construction wastes, shale, coal gangue. It has advantages of high production efficiency, good crushing effect.

Product Description

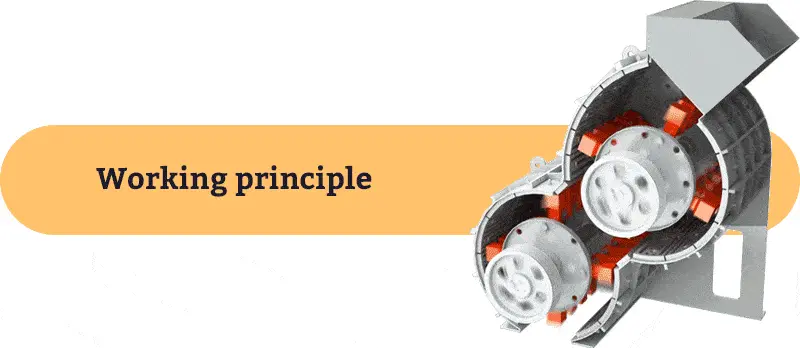

Working Principle

During operation, two rotors rotate at high speed at the same time driven by dual motors. The materials in the inner cavity of the machine are crushed by the upper rotor and being immediately crushed again by the hammer of the rapidly rotating rotor below. The materials in the inner cavity collide with each other rapidly and they crush each other completely to achieve better crushing effect.

double roller crusher detail1
Technical Parameter
Specification Capacity (t/h) Motor Power (kw)
ZPC Φ600×600 20-30 22kw+22kw
ZPC Φ800×600 35-55 45kw+55kw
ZPC Φ1000×800 60-90 55kw+75kw
ZPC Φ1200×1000 80-120 90kw+110kw
ZPC Φ1400×1200 100-140 132kw+160kw
ZPC Φ1600×1400 120-180 160kw+200kw
Frequently Asked Questions (FAQ)
How does the double rotor crusher operate?
It operates using dual motors that drive two rotors to rotate at high speed simultaneously, ensuring rapid and complete material crushing.
What is the capacity range of these crushers?
The capacity ranges from 20-30 t/h (for the ZPC Φ600×600 model) up to 120-180 t/h (for the ZPC Φ1600×1400 model).
What makes the crushing effect highly efficient?
The materials are first crushed by the upper rotor and immediately crushed again by the rapidly rotating lower rotor. The materials collide with each other rapidly inside the cavity, leading to complete crushing.
What is the motor power required for the ZPC Φ1200×1000 model?
The ZPC Φ1200×1000 model requires a dual motor setup with a power rating of 90kw + 110kw.
What is the capacity of the ZPC Φ1000×800 crusher?
The ZPC Φ1000×800 model provides a production capacity of 60-90 t/h.
What is the power specification for the ZPC Φ600×600 model?
The ZPC Φ600×600 model operates with a motor power specification of 22kw + 22kw.
