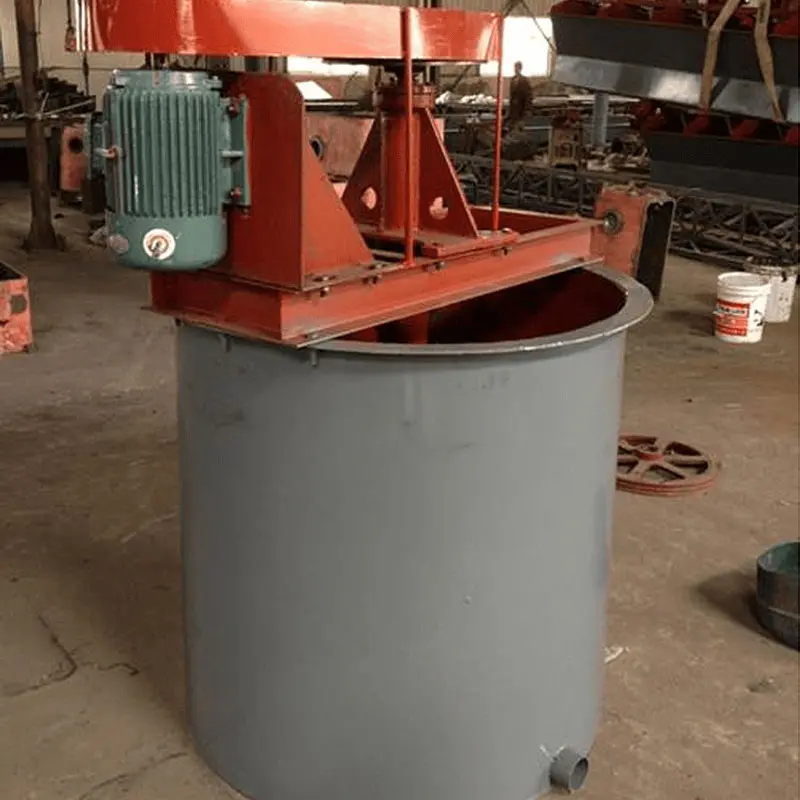

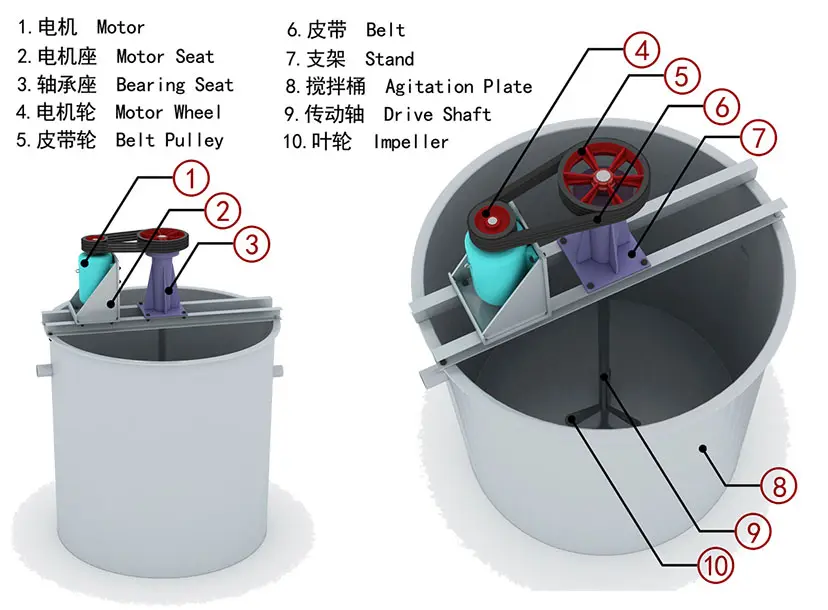

The mixing bucket includes motor, impeller, stator, bearing and other components. The mixing operation is carried out by using the flat bottom drum radiation circulation spiral impeller mechanical mixing method. When the mixing tank is activated, the motor pulls the triangle belt drive device to drive the impeller to rotate. Under the constant speed mixing of the impeller, the slurry and the agent can fully mix with each other, increasing the reaction time of the agent to the slurry, strengthening the reaction quality of the drug. Finally, the materials can be fully stirred and mixed which makes necessary preparation for next stage of production of flotation machine.
| Internal Size of Trough | Effective Volume (m³) | Stirrer | Motor | Overall Dimension | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm) | Height (mm) | Diameter (mm) | Rotation Speed (r/min) | Model | Power (kw) | Total Height (mm) | Max Length (mm) | ||
| 1000 | 1000 | 0.58 | 240 | 530 | Y100L-6 | 1.5 | 1665 | 1300 | 685 |
| 1500 | 1500 | 2.2 | 400 | 320 | Y132S-6 | 3 | 2386 | 1600 | 861 |
| 2000 | 2000 | 5.6 | 550 | 230 | Y132ml-6 | 4 | 3046 | 2381 | 1240 |
| 2500 | 2500 | 11.2 | 625 | 230 | Y160M-6 | 7.5 | 3546 | 2881 | 3462 |
| 3000 | 3000 | 19.1 | 700 | 210 | Y225S-8 | 18.5 | 4325 | 3266 | 4296 |
