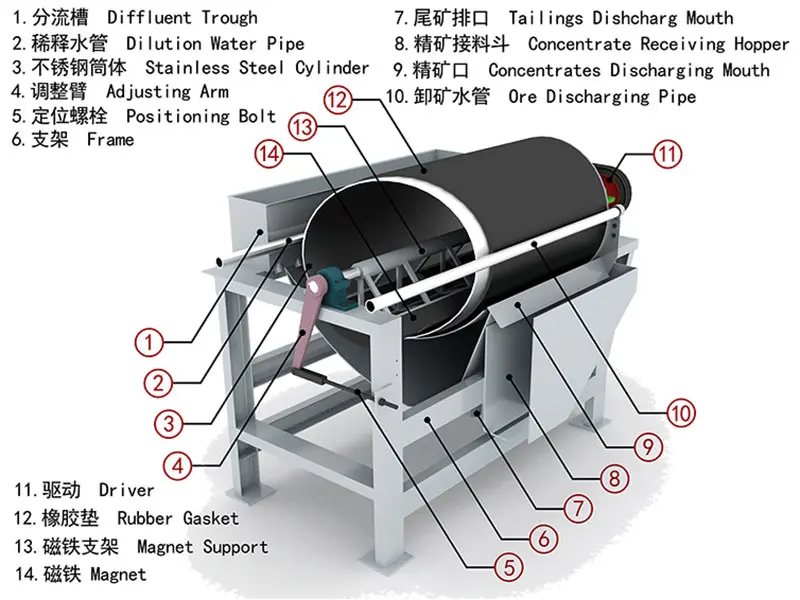

The magnetic system is a compound of fine ferrite material and rare earth magnets. With ore pulp entering magnetic field area, the ferromagnetic materials are sucked up on the surface of the drum. In the contrary, weak magnetic substances and nonmagnetic minerals are washed away by water.
The absorbed magnetic minerals on the surface of drum will rotate with the drum and leave magnetic field area. It is suitable to dry separate the fine particle strong magnetic ore, because of speedy rotation, the magnetic particles rolling more times than other magnetic separator, which is effectively destroy the reunite of magnetic and arise the high-grade ore.
The ore are divided into magnetic and nonmagnetic after separation and discharge from the outlet. The average magnetic induction intensity of the surface of the cylinder is 100~600mT.
The magnetic system is built from a high-quality compound of fine ferrite material combined with rare earth magnets to ensure powerful magnetic attraction.
While ferromagnetic materials are sucked onto the surface of the drum, weak magnetic substances and nonmagnetic minerals are efficiently washed away by water.
The rapid rotation causes the magnetic particles to roll more times than in typical separators. This effectively breaks up reunited magnetic clusters and upgrades the overall grade of the ore.
The average magnetic induction intensity measured on the surface of the cylinder ranges from 100mT to 600mT.
After separation, the processed ore is divided into magnetic and nonmagnetic fractions, which are then discharged separately from their respective outlets.
