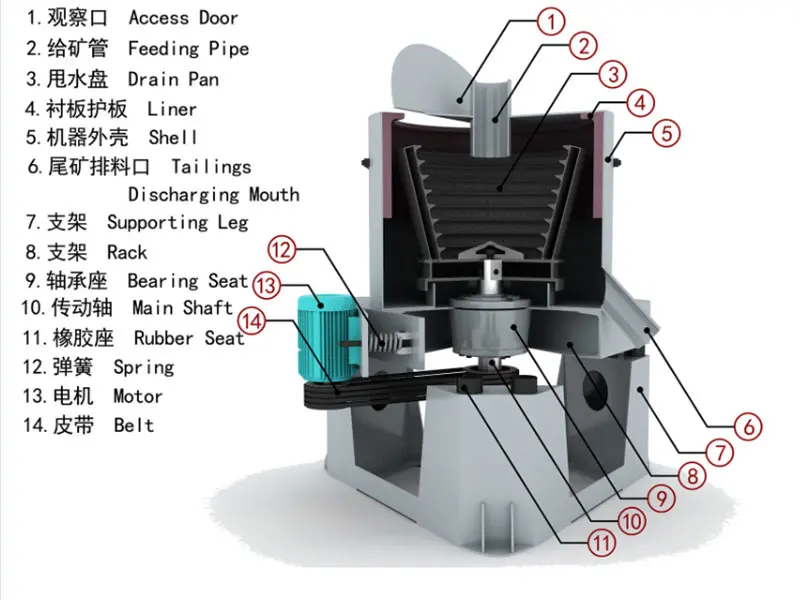

The machine utilizes the principles of centrifuge to enhance the gravitational force to separate minerals based on particles density. Once operated, the lighter material flows upward over the grooves and heavier mineral particles become trapped within them. With pressurized water injecting along the perimeter of each groove to maintain a fluidized state of particles, heavy mineral particles can be concentrated in an efficient way at last.
| Model | Capacity (t/h) | Power (kw) | Feed size (mm) | Slurry density (%) | Backlash water quantity (kg/min) | Concentrates capacity (kg/time) | Cone rotation speed (r/min) | Pressure water required (Mpa) | Weight (t) |
|---|---|---|---|---|---|---|---|---|---|
| STL-30 | 3-5 | 3 | 0-4 | 0-50 | 6-8 | 10-20 | 600 | 0.05 | 0.5 |
| STL-60 | 15-30 | 7.5 | 0-5 | 0-50 | 15-30 | 30-40 | 460 | 0.16 | 1.3 |
| STL-80 | 40-60 | 11 | 0-6 | 0-50 | 25-35 | 60-70 | 400 | 0.18 | 1.8 |
| STL-100 | 80-100 | 18.5 | 0-6 | 0-50 | 50-70 | 70-80 | 360 | 0.2 | 2.8 |
