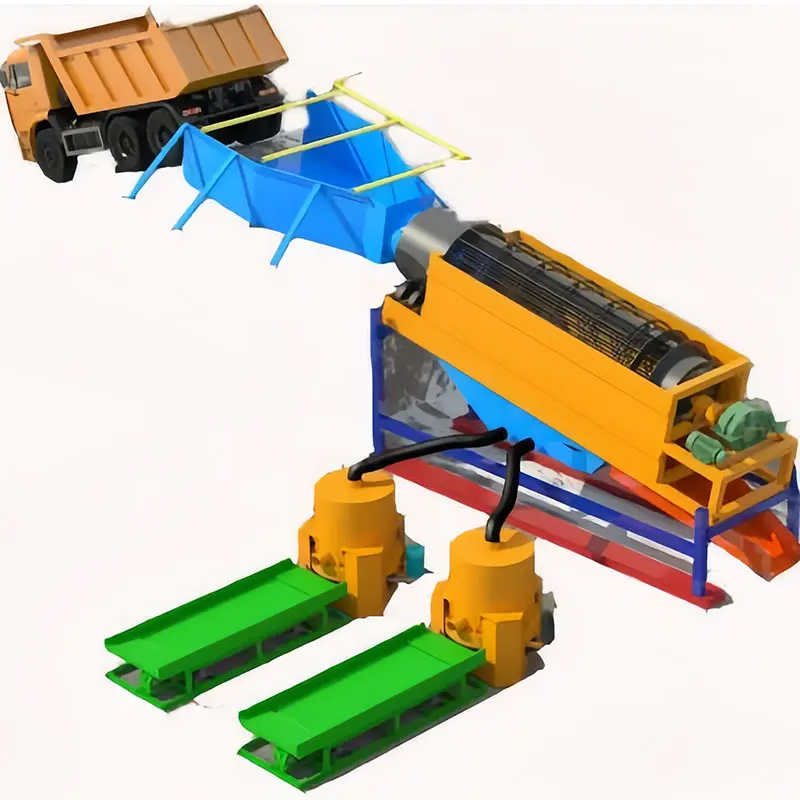

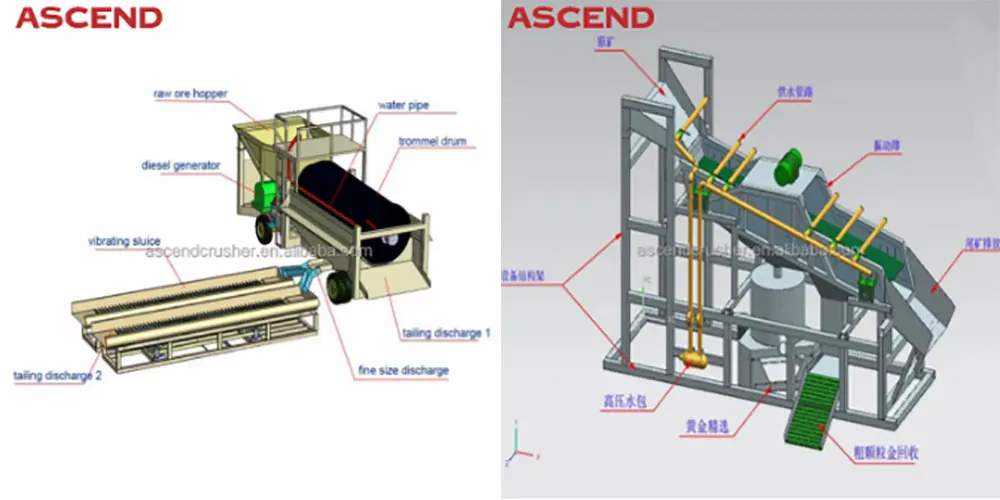

After finishing installation of the whole plant. Use excavator to dig the raw material and feed into the hopper of the washing trommel, big stone larger than 20mm will be screened out from the grate bars of the hopper, small size less than 20mm will go into the trommel screen. (The mesh size can be customized according to the customer's need.) The clay or mud in the raw material will be washed away from the rotary trommel screen, and then the gold particles will be feed into the gold centrifugal concentrator or swing vibrating sluice, (usually we recommend concentrator, because it can achieve high recovery rate for different gold particle sizes from 40 mesh to 200 mesh). Following the concentrator is gold sluice with gold blanket, the gold concentrate sediment in the bottom of the gold blanket, which is used to recover the remaining gold in the concentrator. The tailing gold will be collected again from the fixed sluice box to further improve the recovery rate.
| SPECIFICATIONS OF GOLD EXTRACTION EQUIPMENT FOR WASHING GOLD SEPARATOR MACHINE | ||||
|---|---|---|---|---|
| Model | GTS20 | GTS50 | MGT100 | MGT200 |
| Size / mm | 6000*1600*2499 | 7000*2000*3000 | 8300*2400*4700 | 9800*3000*5175 |
| Capacity | 20-40 tph | 50-80 tph | 100-150 tph | 200-300 tph |
| Power | 20 kw | 30 kw | 50 kw | 80 kw |
| Trommel Screen / mm | Φ1000*2000 | Φ1200*3000 | Φ1500*3500 | Φ1800*4000 |
| Sluice Box | 2 sets | 2 sets | 3 sets | 4 sets |
| Water Supply / m³ | 80 m³ | 120 m³ | 240 m³ | 370 m³ |
| Recovery Rate | 95% | 98% | 98% | 98% |
An excavator feeds raw material into the hopper of the washing trommel. Big stones larger than 20mm are screened out by grate bars, while smaller materials proceed directly into the trommel screen for further washing and separation.

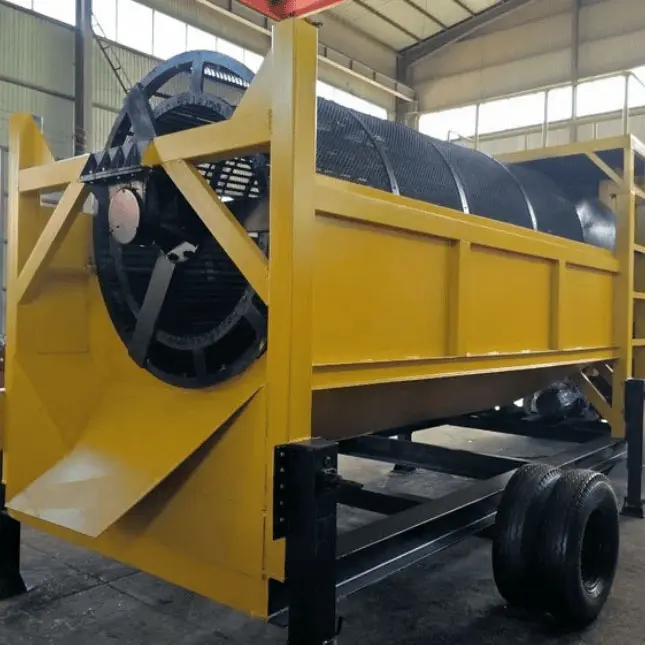

Yes. The mesh size of the trommel screen can be customized based on your specific operational requirements and the characteristics of the raw materials.

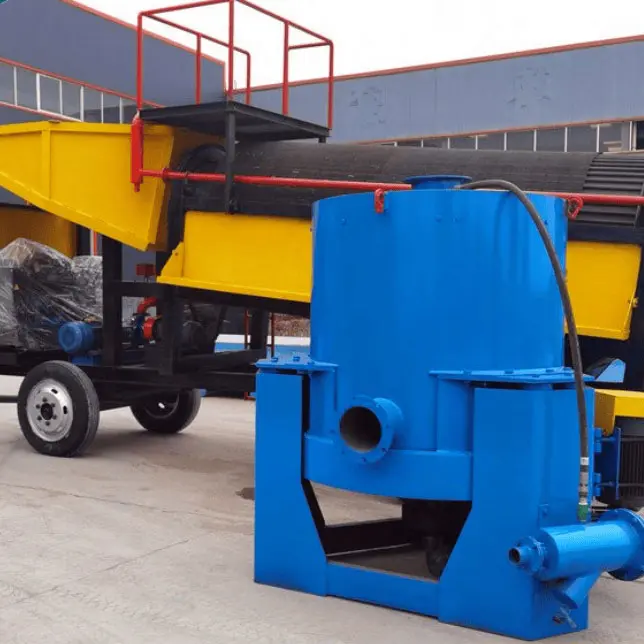

We recommend the gold centrifugal concentrator because it achieves a high recovery rate for different gold particle sizes, especially ranging from 40 mesh to 200 mesh.
The plant combines a centrifugal concentrator with a downstream gold sluice and gold blanket to capture remaining gold. Finally, the tailing gold is collected in a fixed sluice box to maximize the overall recovery rate.
The capacity depends on the model. It ranges from 20-40 tph (for the GTS20 model) up to 200-300 tph (for the heavy-duty MGT200 model).
Water requirements scale with machine size. The required water supply ranges from 80 m³ per hour for the GTS20 model to 370 m³ per hour for the MGT200 model to ensure effective clay washing.
